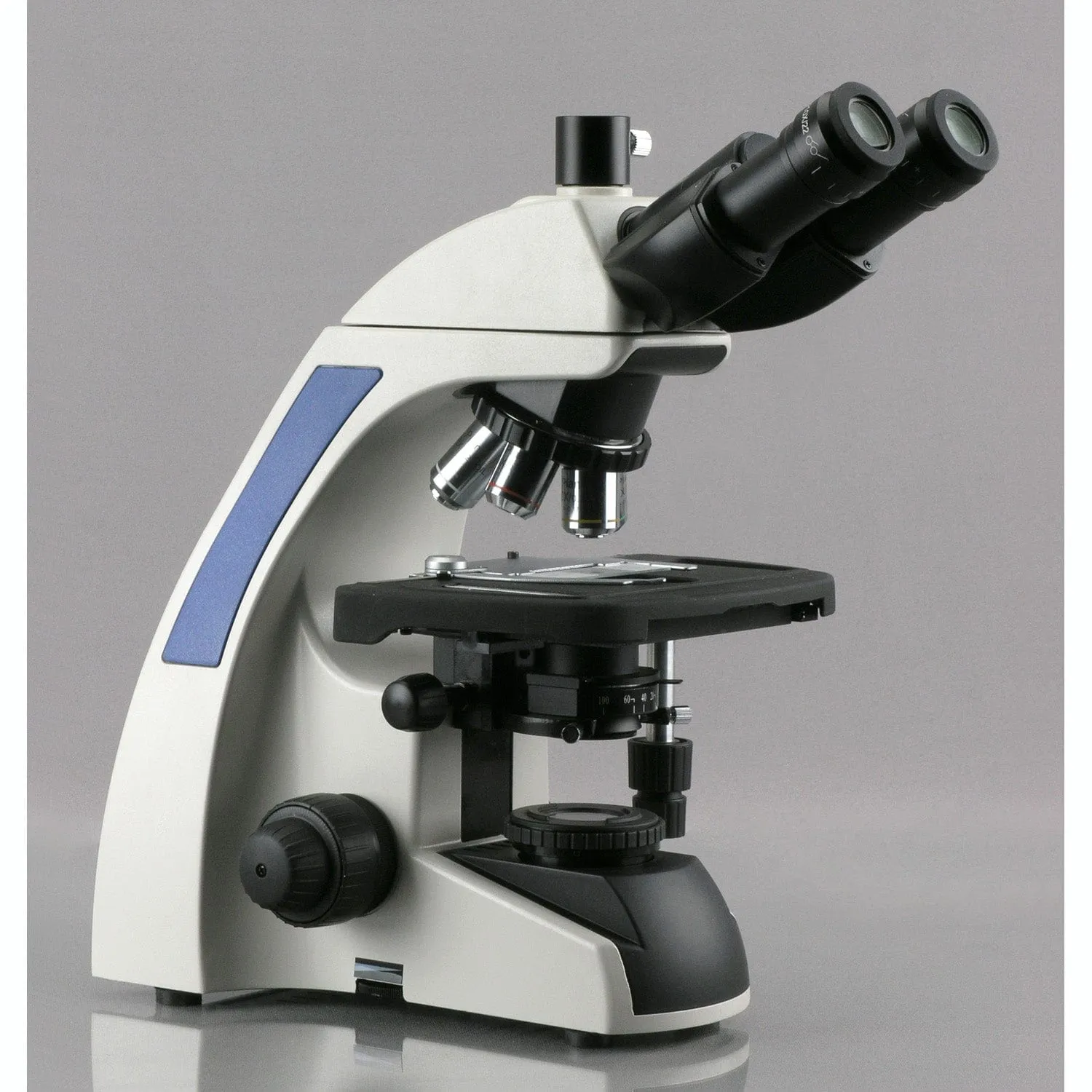

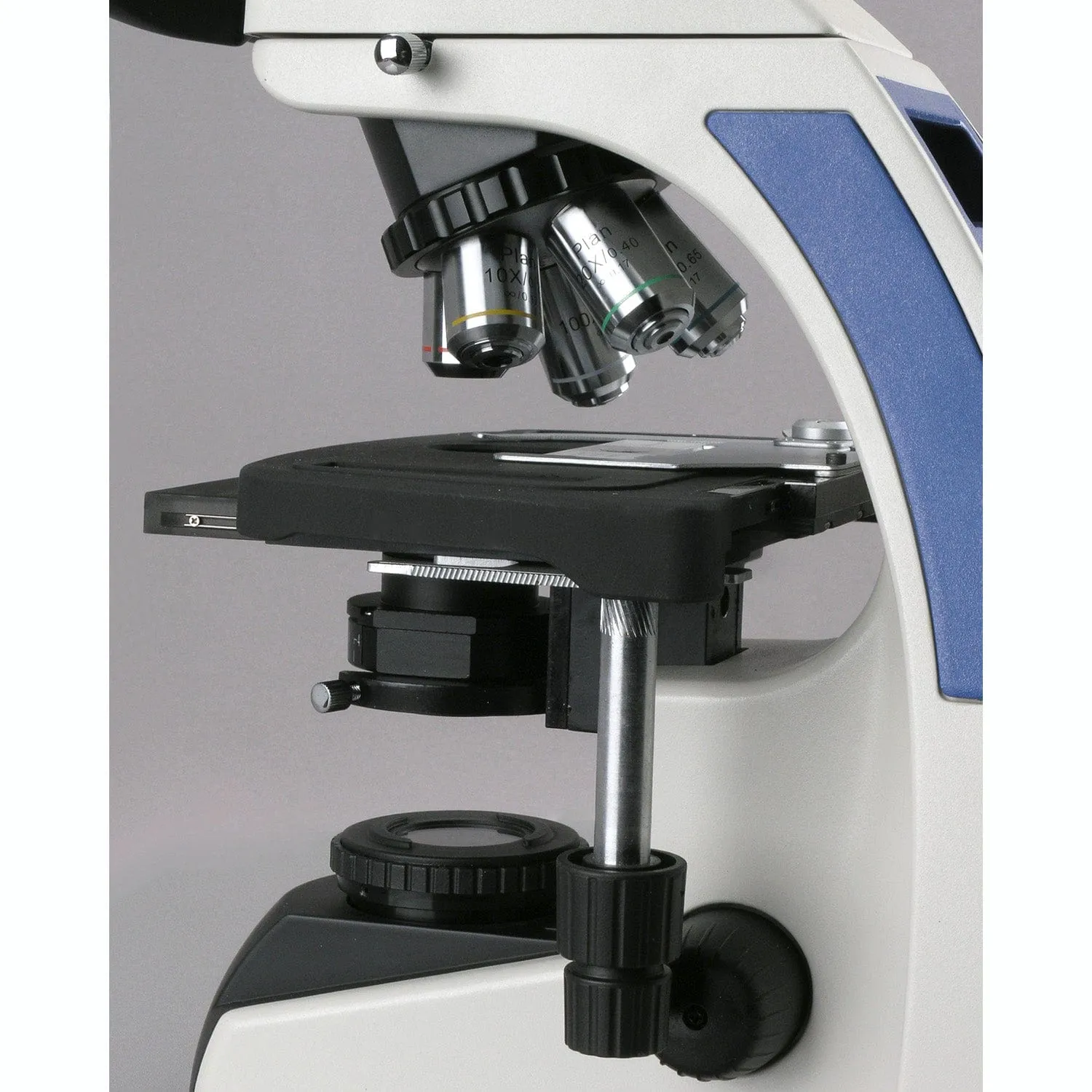

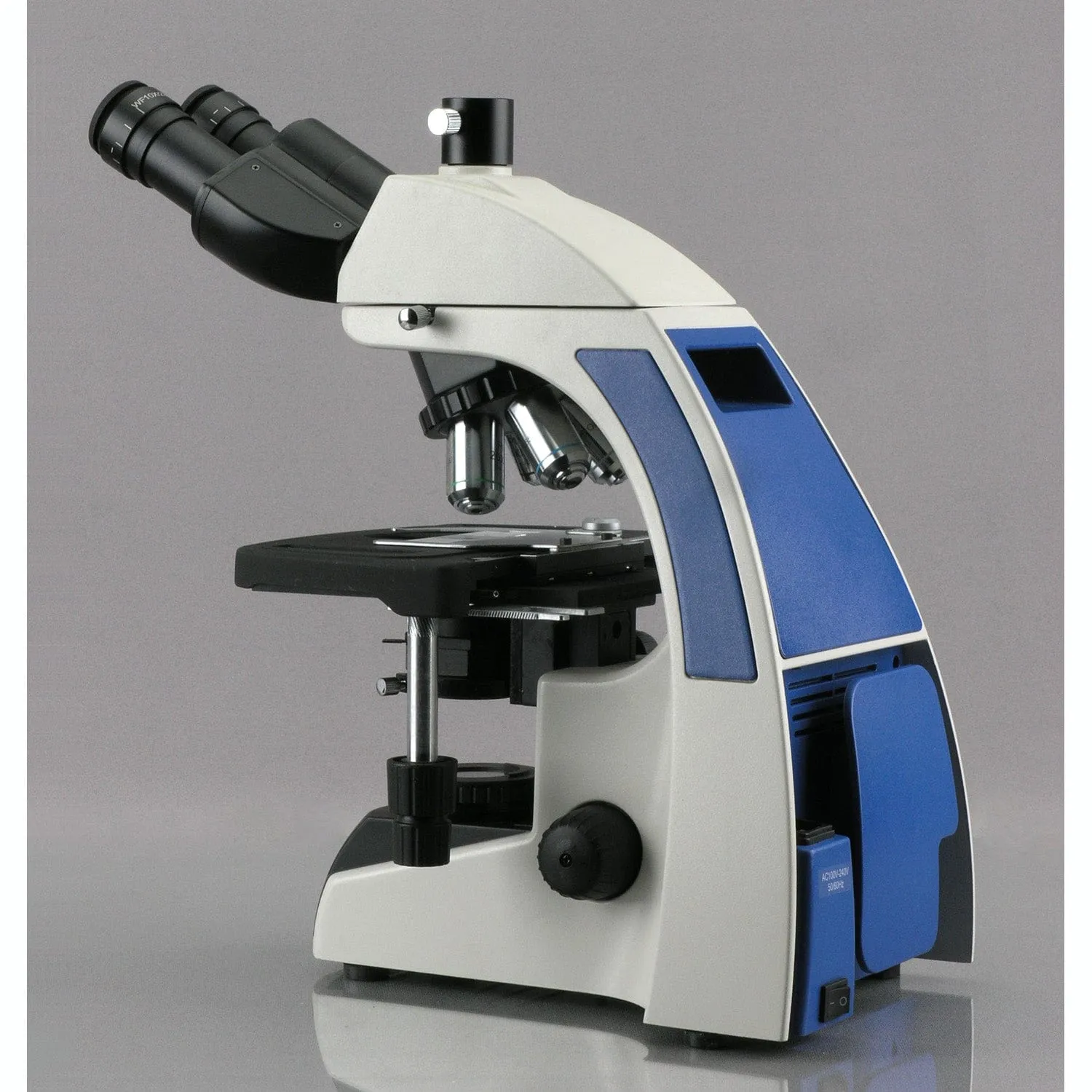

The T720C-PCT720-INF is a professional compound-microscope, with infinity-corrected plan optics, and a field-diaphragm and centerable condenser for Kohler illumination. Along with the bright-field condenser, an oil dark-field condenser and an iris-controlled objective-lens are included for applications requiring contrast enhancement. The backward nosepiece offers ergonomic control over the four objectives: 4X, 10X, 40X, 100X. With the 10X & 25X wide-field eyepieces, magnification levels from 10X to 2500X can be achieved with extreme clarity. The head can be swiveled 360°, and features a 30° incline with compensation-free interpupillary-adjustment. The ultra-smooth stage moves with coaxial translation controls. The 3W LED (30W halogen equivalent) provides a cool, daylight-balanced light-source. The phase contrast condenser is designed for use with translucent live samples to prevent the use of stains or dyes, and can provide high NA for higher magnifications.
Features :
Infinity Corrected Optical System with High Resolution
Fully Coated Optics with Crystal Clear & Sharp Images
Precise Mechanical Control System
Reversed Nosepiece Design
Kohler Illumination System with Field Diaphragm
Six Magnification Levels: 40X, 100X, 250X, 400X, 1000X, 2500X
Variable-intensity Transmitted LED Lighting System
Abbe Condenser with Iris Diaphragm and Filter Holder
Rack and Pinion Adjustment for Condenser
Low Position Coaxial Stage Movement Controlling Knobs
Dual Side Coaxial Coarse and Fine Focusing Control
Adjustable Interpupillary Distance
Adjustable Diopter on Eyepieces
Durable Cast Alloy Frame with Stain Resistant Enamel Finish
Five Infinity Plan Objectives Included
Extreme Widefield Eyepieces
Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
Large Double Layer Mechanical Stage with Stain Resistant Coating
Upward Stage Limit Stop to Protect Objectives and Slides
Manufactured under ISO 9001 Quality Control Standards
Excellent Five (5) Year Factory Warranty
Specifications :
Optical System: infinity corrected
Nosepiece: reversed, ball bearing quintuple
Head: gemel type trinocular head, 30-degree inclined
Eyepiece: high eye-point eyepieces, WF10X22mm & WF25X
Objectives: infinity plan objective 4X, 10X, 40X (spring), 100X (spring, oil)
Focusing: low position coaxial focus system
Focusing Range: 1-3/16" (30mm)
Interpupillary Adjustment Range: 2-3/16" - 3" (55-75mm)
Mechanical Tube Length: 6-5/16" (160mm)
Mechanical Stage: 8.5" x 5.9" (216mm x 150mm)
Stage Traveling Range: 2.9" x 2" (75x50mm)
Focusing Rang: 0.95" (24mm)
Division of Fine Focusing: 0.00003935" (0.001mm)
Illuminator: Built-in Kohler LED illumination system
Bright-field Condenser: N.A. 1.25 achromatic condenser
Phase Contrast Condenser Turret Kit
Illumination: LED
Power Supply: 90V-240 wide voltage, CE certified

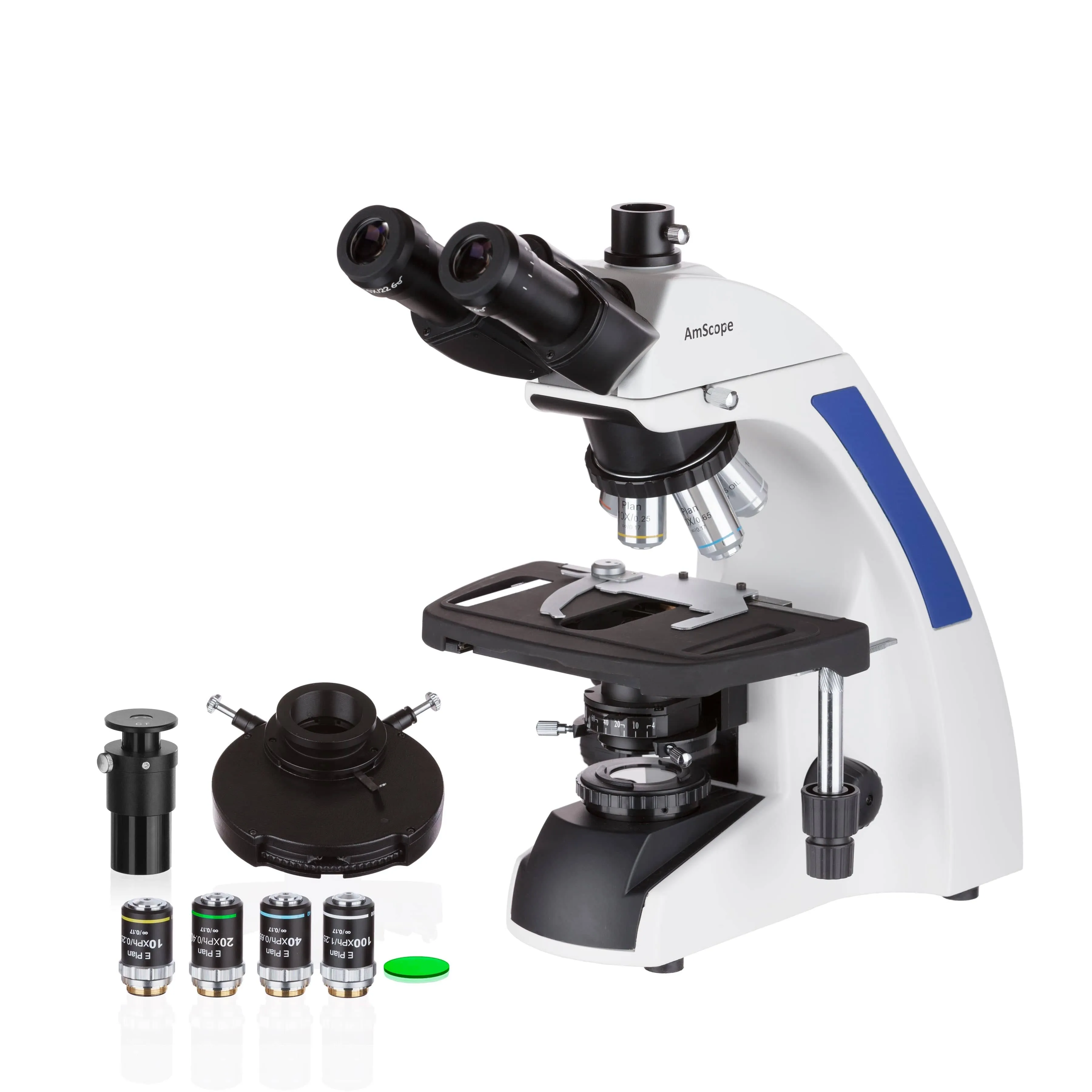

Packing List :
One Trinocular Compensation-Free Head
One Microscope Body with Frame, Base, and Kohler Illumination System
Four High Quality Plan Achromatic Objectives: 4X, 10X, 40X, 100X
One Phase Contrast Turret Kit
One Pair of Extreme Widefield WF10X Eyepieces
One Pair of Extreme Widefield WF25X Eyepieces
One Dust Cover
