Name: AmScope T340 Series Trinocular Compound Microscope 40X-2000X Magnification with 3W LED, 3D Mechanical Stage and 1.3MP USB 2.0 C-mount Camera
SKU: 586767

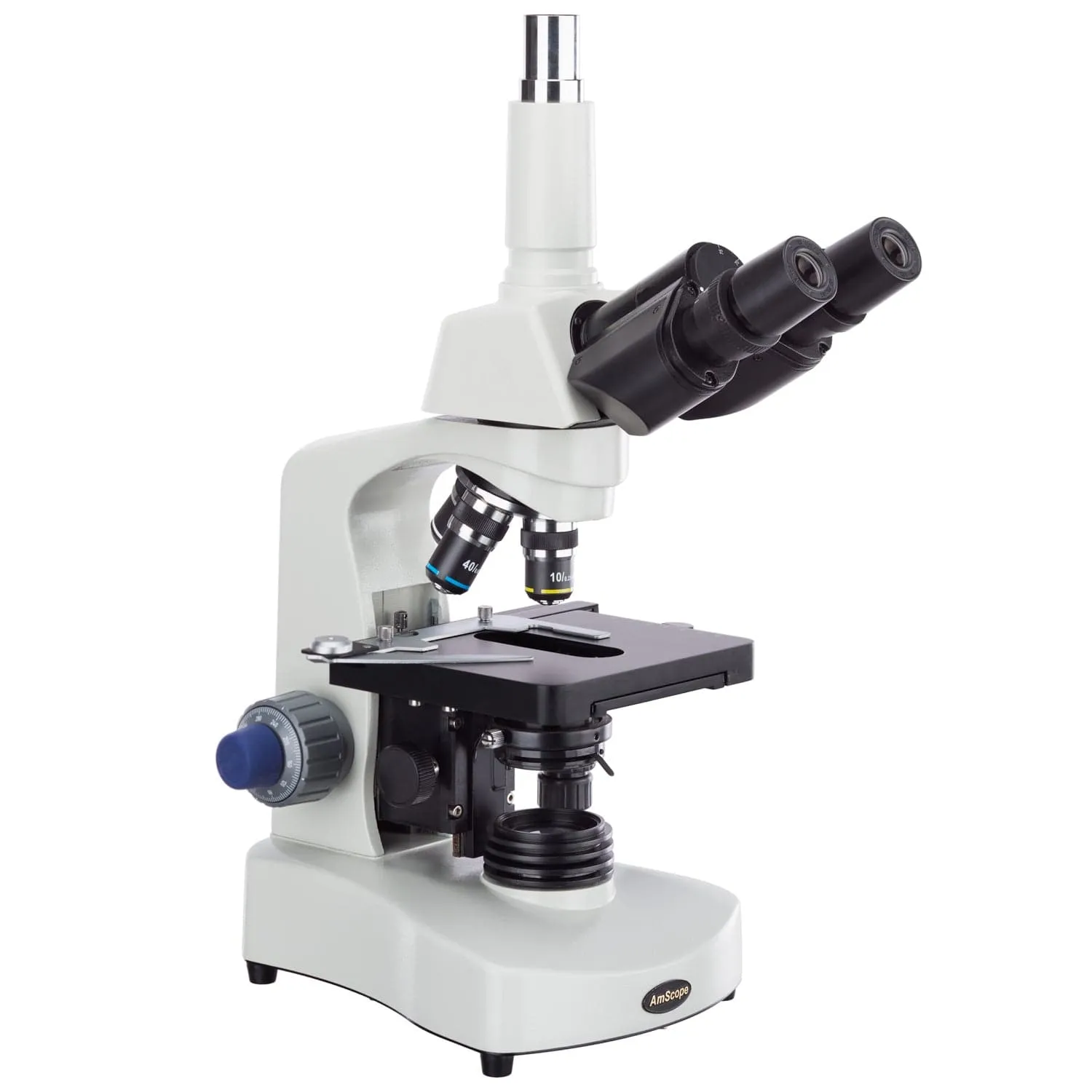

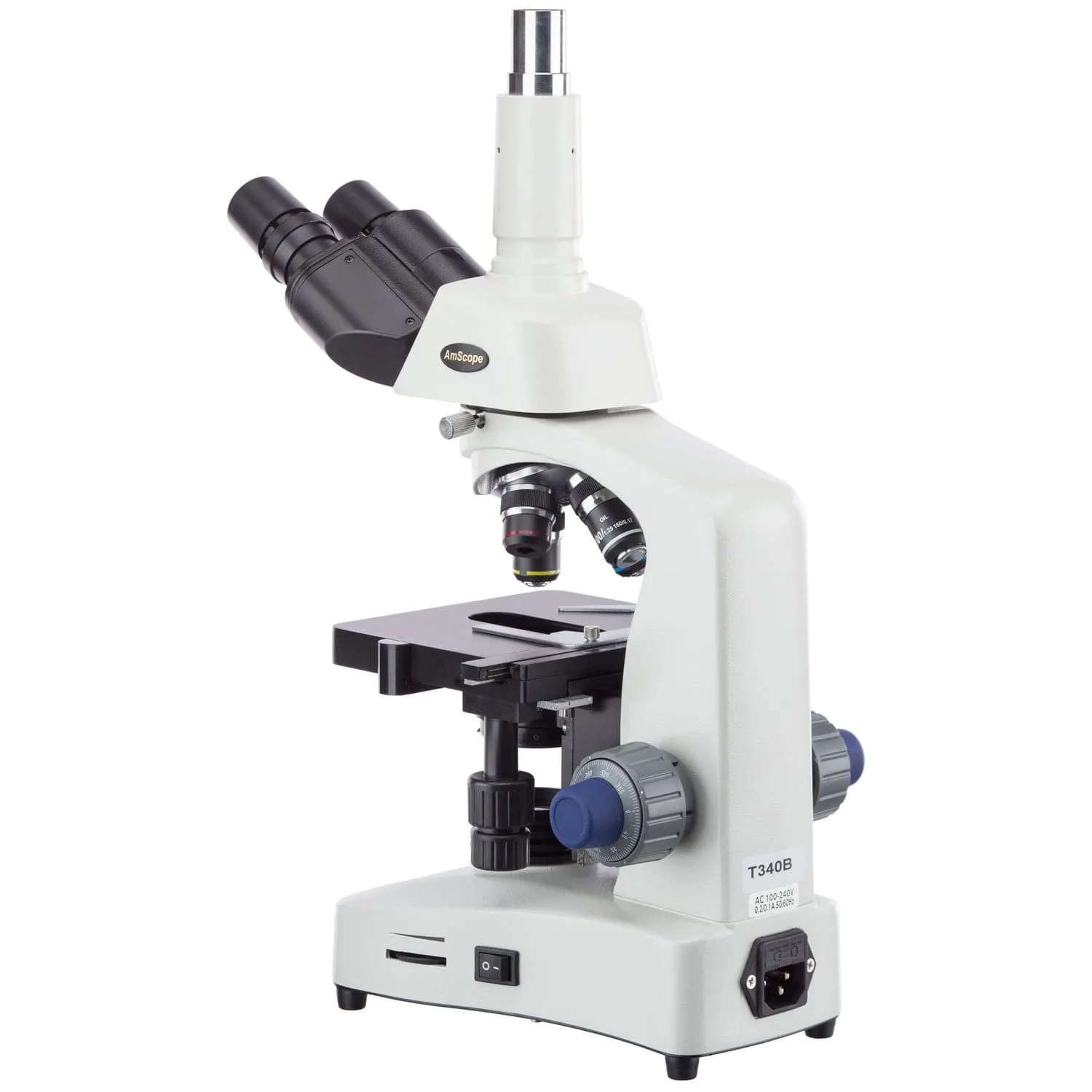

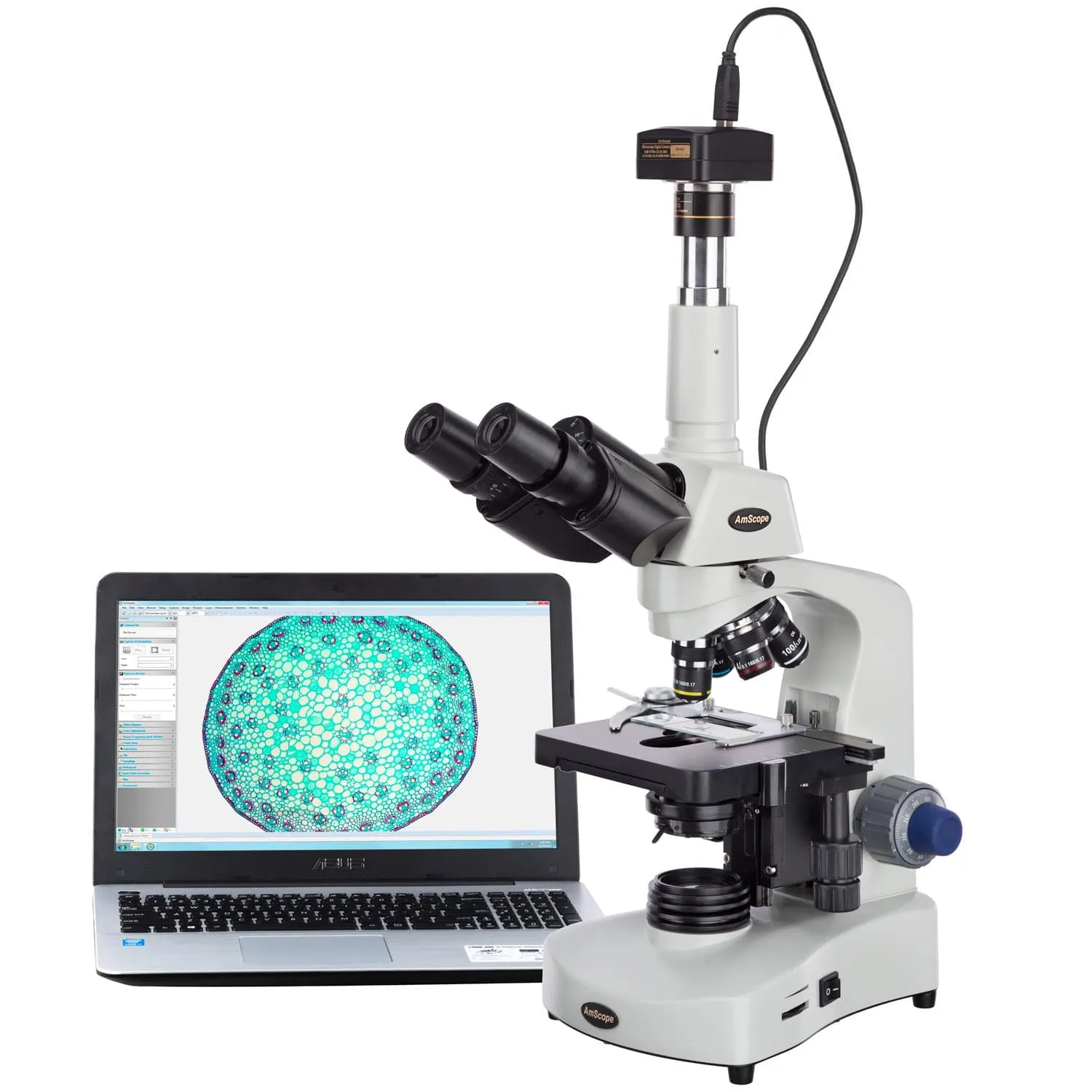

This trinocular compound microscope with 1.3MP USB2.0 color digital camera is designed for clinical examination and teaching demonstration in medical field, veterinary offices, laboratories and colleges. It comes with Siedentopf trinocular head, backward nosepiece, 3D mechanical stage, and powerful 3W LED illumination. It offers eight settings (40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X). The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscopy system is an ideal instrument for biological, veterinary, bacteriological and pharmaceutical applications.

Features :

Eight Magnification Settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X
Perfect for Clinics, Vets, Doctors and College Students
30 Degree Inclined 360 Degree Swiveling Siedentopf Trinocular Head

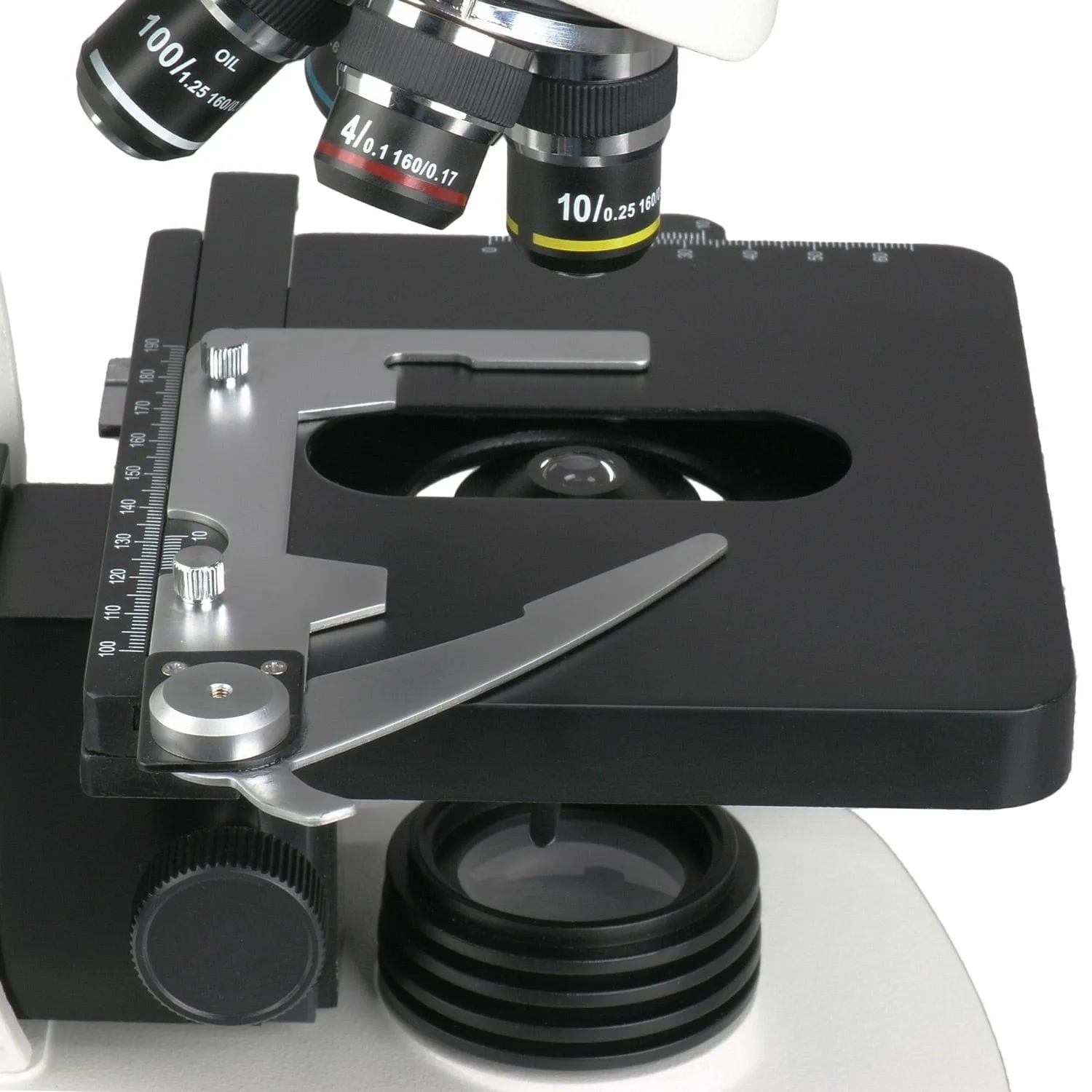

3D X-Y Mechanical Stage with Stain Resistant Finish and Slide Clips
Coaxial Coarse Fine Focusing with Tension Control and Stopper
Crystal Clear High Definition Sharp Images
Fully Coated Optical System with High Resolution
Dual Side Focusing Control Knobs
Built-in LED Illumination System with Adjustable Brightness
Abbe Condenser with Iris Diaphragm Swing-Out Filter Holder
Four DIN Achromatic Objectives
Two Sets of Eyepieces Included
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Adjustable Diopter on Ocular
Solid Metal Frame Construction with Stain Resistant Enamel Finish
Manufactured under ISO 9001 Quality Control Standard.
Excellent Five (5) Year Factory Warranty

Specifications :

Nosepiece: quadruple
Head: 30 degree inclined Siedentopf trinocular head 360 degree swiveling
Interpupillary Distance: 48mm-75mm
Diopter: Adjustable left eye tube
Eyepiece: WF10X/18mm and WF20X
Achromatic Objective: 4X, 10X, 40X (spring), 100X (spring, oil)
Stage Dimensions: 110mm x 140mm
Stage Traveling Range: 78mm X 40mm
Focusing: Coaxial coarse fine, with tension control and stopper
Abbe Condenser: NA=1.25 with iris diaphragm filter
Illumination: variable 3W LED
Power Supply: 220V/220V
Filter: blue and green

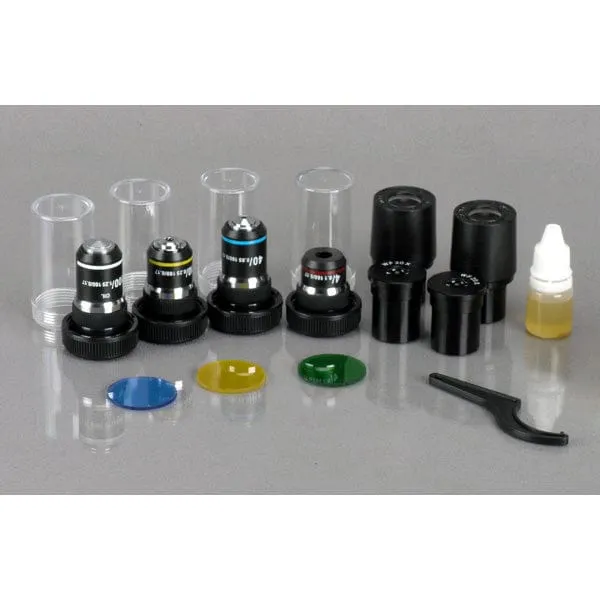

Accessories: Eye-guards, dust cover, immersion oil

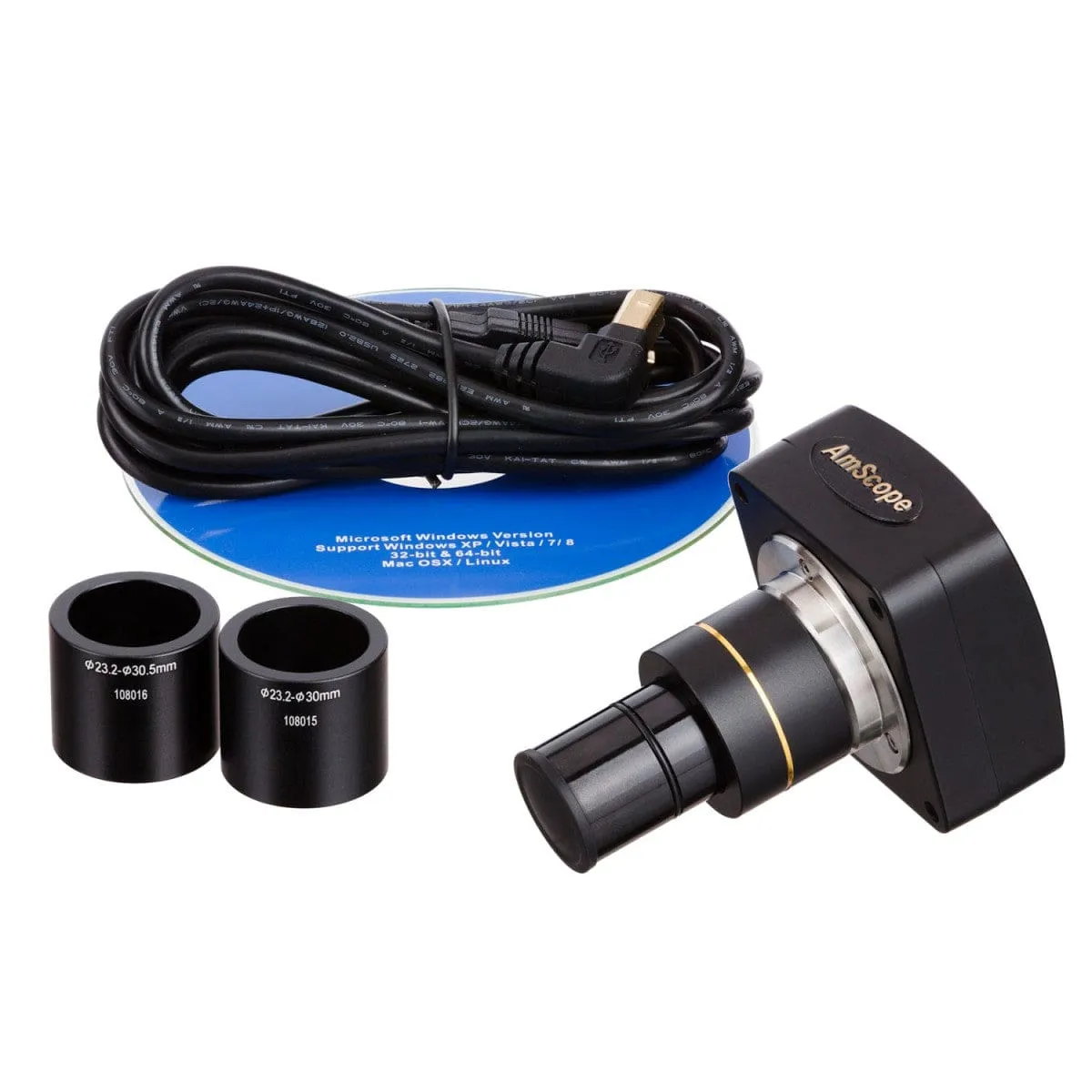

Camera Specifications:

Sensor: Aptina MT9M111
Sensor Type: CMOS
Sensor Size: 4.6x3.7mm
Pixel Size: 3.6
Resolution: 1.3MP
Frame Rate: 15@1280x1024, 26@640x512, 50@320x256
Sensitivity: 1.0V/lux-sec
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8 , Linux kernel 3.13
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
